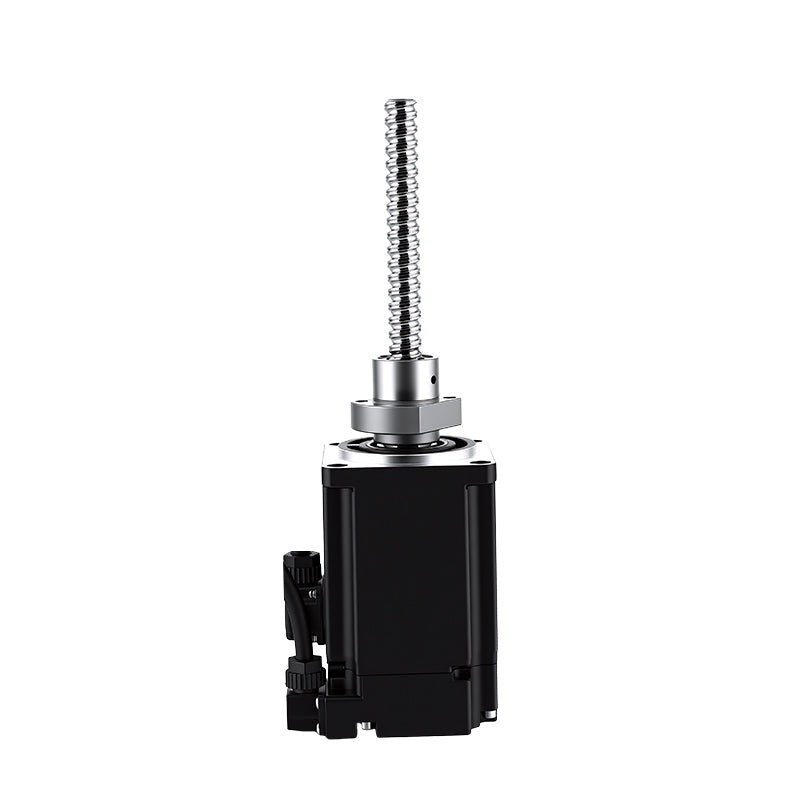

NEMA 16 Linear Lead Screw Servo Motor (39mm Frame)
High-thrust NEMA 16 linear lead screw servo motor with integrated encoder. Closed-loop accuracy and zero backlash options for medical diagnostics and 3D precision printing. The NEMA 16 linear lead screw servo motor combines a 39mm...
Include your application, load, speed, travel, accuracy, quantity and installation requirements.
Technical Information
Product Details
High-thrust NEMA 16 linear lead screw servo motor with integrated encoder. Closed-loop accuracy and zero backlash options for medical diagnostics and 3D precision printing.
The NEMA 16 linear lead screw servo motor combines a 39mm high-torque brushless servo architecture with a high-rigidity lead screw assembly. Engineered for high-speed linear positioning and smooth force modulation, this servo actuator provides seamless closed-loop control for demanding multi-axis automation.
Featuring customizable screw leads and anti-backlash nut options, this compact linear servo motor delivers high positional repeatability under heavy reversing loads, making it an ideal choice for high-precision manufacturing systems.
Key Features & Advantages
-
Robust Closed-Loop Performance: Real-time encoder feedback guarantees high dynamic accuracy and torque stability.
-
High Linear Speed Capabilities: Optimized servo winding allows rapid linear motion without torque drop-off at high RPM.
-
Anti-Backlash Options: Available with preloaded POM or bronze nuts to eliminate axial clearance.
-
Seamless System Integration: Compatible with standard digital servo drives and CANopen / EtherCAT networks.
Technical Specifications
| Feature / Parameter | Standard Specification |
| Frame Size | NEMA 16 (39mm x 39mm) |
| Actuator Style | Integrated Linear Lead Screw Servo |
| Encoder Resolution | 2000 / 4096 Lines per rev |
| Lead Screw Options | Precision ACME / High-Efficiency Ball Screw |
| Screw Diameter | 6mm / 8mm |
| Lead / Pitch Range | 2.0mm, 4.0mm, 8.0mm per revolution |
| Max Linear Thrust | Up to 350 N |
| Rated Speed | Up to 3000 RPM |
| Insulation Class | Class B (130°C) |
Typical Applications
-
Medical Diagnostic Instruments & Automated Blood Analyzers
-
High-Speed 3D Bioprinting & Dispensing Heads
-
Precision Laser Cutting & Engraving Positioning
