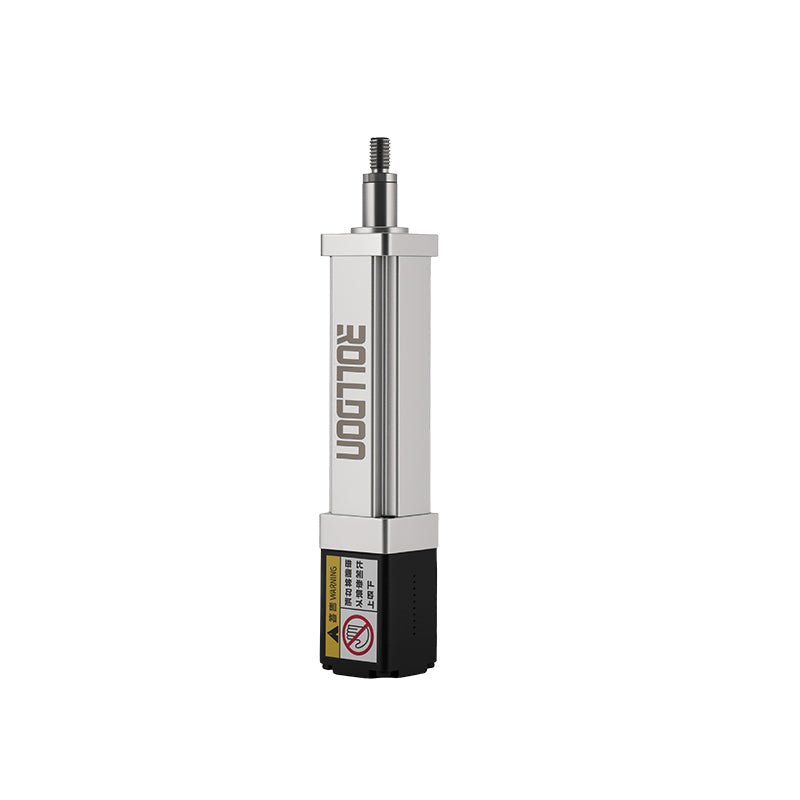

Ball Screw Electric Cylinder for High-Thrust Linear Motion
Heavy-duty ball screw electric cylinder featuring high thrust, high speed, and reduced-backlash. electromechanical alternative to hydraulic and pneumatic cylinders for factory automation and testing rigs. The ball screw electric cylinder is a high-performance, heavy-duty linear...
Include your application, load, speed, travel, accuracy, quantity and installation requirements.
Technical Information
Product Details
Heavy-duty ball screw electric cylinder featuring high thrust, high speed, and reduced-backlash. electromechanical alternative to hydraulic and pneumatic cylinders for factory automation and testing rigs.
The ball screw electric cylinder is a high-performance, heavy-duty linear actuator engineered to deliver high axial thrust and precision positioning control. By integrating a high-precision preloaded ball screw with an advanced servo or stepper motor, this electric cylinder converts rotational torque into powerful, highly repeatable linear push/pull force.
Designed as an energy-efficient, clean alternative to traditional hydraulic and pneumatic cylinders, this servo electric actuator eliminates fluid leaks, complex piping, and high maintenance costs. It provides exceptional dynamic stiffness and programmable force/velocity control for demanding industrial motion tasks.
Key Features & Advantages
-
High Thrust Capacity: Generates heavy axial forces up to 100 kN, making it ideal for pressing, lifting, and clamping operations.
-
Precision Closed-Loop Control: Delivers continuous high-accuracy positioning, speed regulation, and real-time force feedback.
-
Energy-Efficient & Clean: Consumes energy only during movement with zero risk of hydraulic oil leakage, ideal for cleanroom and food-grade environments.
-
Long Service Life & Low Wear: Rolling ball contact minimizes mechanical friction, ensuring reliable, continuous high-duty operation.
-
Flexible Motor Mounting: Supports direct inline motor coupling or compact parallel fold-back motor configurations with timing belt drives.
Technical Specifications
| Feature / Parameter | Standard Specification |
| Drive Mechanism | High-Precision Preloaded Ball Screw |
| Cylinder Frame Sizes | 40mm, 60mm, 80mm, 100mm, 125mm, 160mm |
| Stroke Length Options | 50mm up to 1500mm (Customizable) |
| Max Axial Thrust Force | 500 N to 100,000 N (10 Tons) |
| Max Linear Velocity | Up to 1500 mm/s |
| Positional Repeatability | ± 0.01 mm |
| Motor Drive Options | AC Servo Motor, Stepper Motor, or BLDC Motor |
| Protection Rating | IP65 Standard (IP67 Waterproof optional) |
| Rod Material | Chrome-Plated Stainless Steel / Hard Chrome Alloy |
Typical Applications
-
Industrial Servo Pressing, Stamping & Riveting Machinery
-
Motion Simulators, Flight Simulators & Multi-AXIS Testing Rigs
-
Automated Valve Control & Material Handling Lifters
-
Cleanroom Semiconductor & Battery Manufacturing Equipment
Engineering resources
Parameters, Drawings & Performance Data
Use order-specific technical documents for final selection. Published information should be checked against the required operating conditions and mechanical interface.
Technical parameters, drawings and performance data are confirmed against the selected model and operating conditions.
Request Technical DataBefore requesting a quote
Information Needed for Model Selection
- Application and motion type
- Load or required thrust / torque
- Speed, travel and acceleration
- Accuracy and repeatability target
- Duty cycle and operating environment
- Installation space and interface drawing
- Controller, drive and feedback requirements
- Quantity, destination and required documents
Verified series range
Product Family Overview
The values below describe the available family range from Thinker Motion's supplied technical files. Confirm the exact model parameters and drawing before ordering.Available lead and stroke combinations vary by series. Confirm the required load, speed, travel, installation orientation and duty cycle before final model selection.
