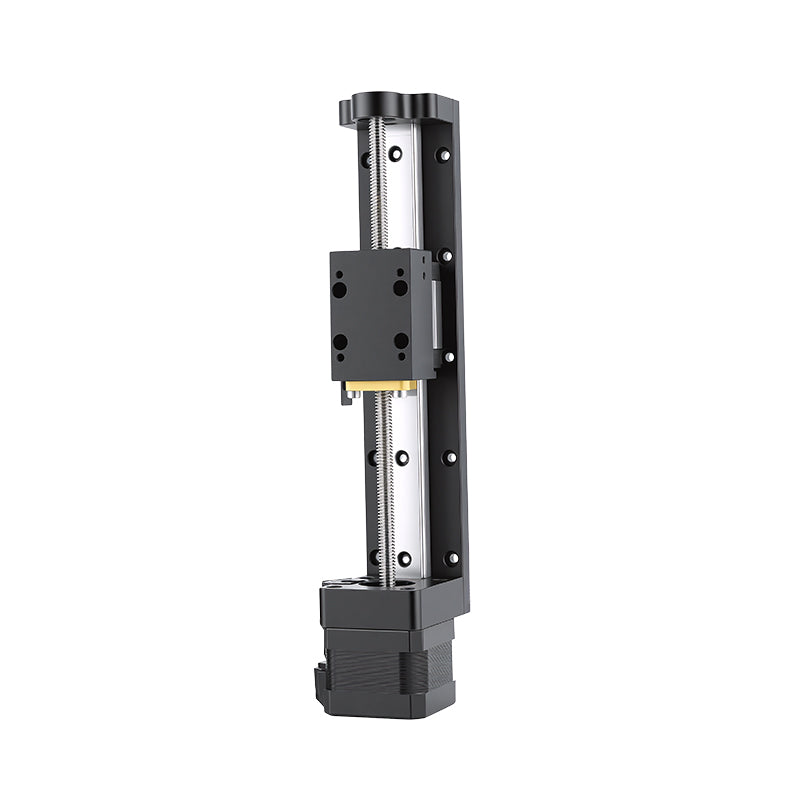

ACME Lead Screw Linear Module (Precision Linear Actuator Stage)

High-precision ACME lead screw linear module. Compact, cost-effective linear motion stage for light-duty automation, medical positioning, and lab equipment. Custom strokes available. The ACME lead screw linear module is a compact, cost-effective linear positioning stage...

Request a Quote

Include your application, load, speed, travel, accuracy, quantity and installation requirements.

Technical Information

Product Details

High-precision ACME lead screw linear module. Compact, cost-effective linear motion stage for light-duty automation, medical positioning, and lab equipment. Custom strokes available.

The ACME lead screw linear module is a compact, cost-effective linear positioning stage designed for smooth, precise linear motion in light-to-medium duty automation systems. Featuring a high-grade precision ACME trapezoidal lead screw integrated with an extruded aluminum base and smooth linear guide rails, this module provides high mechanical rigidity and reliable positioning performance.

Engineered with self-locking capabilities and anti-backlash nut options, this ACME linear actuator stage eliminates back-driving under vertical loads, making it an ideal choice for medical diagnostics, laboratory automation, and precision adjustment mechanisms.

Key Features & Advantages

Self-Locking Safety: Trapezoidal ACME screw profile prevents back-driving under static loads without needing extra power brakes.
Cost-Effective Precision: Delivers high positioning accuracy and smooth travel at an economical price point for volume machinery.
Compact Extruded Aluminum Profile: Lightweight yet durable structure optimizes machine space and simplifies multi-axis mounting.
Quiet & Smooth Operation: Self-lubricating nut options ensure whisper-quiet motion with minimal maintenance required.

Technical Specifications

Feature / Parameter	Standard Specification
Drive System	Precision ACME Lead Screw
Guide Type	Precision Dual Linear Guide Rails / Linear Shafts
Base Material	Anodized Aluminum Alloy Profile
Standard Stroke Lengths	50mm to 500mm (Customizable up to 800mm)
Lead / Pitch Range	2mm, 4mm, 8mm, 12mm per revolution
Positional Repeatability	± 0.02 mm
Max Horizontal Payload	Up to 25 kg
Max Vertical Payload	Up to 10 kg
Motor Options	NEMA 17/23 Stepper Motor or Servo Flange Adapters

Typical Applications

Automated Medical Reagent Handling & Laboratory Pipetting
Optical Alignment Stages & Camera Inspection Positioning
Electronic Assembly & Dispensing Automation Rigs

Engineering resources

Parameters, Drawings & Performance Data

Use order-specific technical documents for final selection. Published information should be checked against the required operating conditions and mechanical interface.

Technical parameters, drawings and performance data are confirmed against the selected model and operating conditions.

Request Technical Data

Before requesting a quote

Information Needed for Model Selection

Application and motion type
Load or required thrust / torque
Speed, travel and acceleration
Accuracy and repeatability target
Duty cycle and operating environment
Installation space and interface drawing
Controller, drive and feedback requirements
Quantity, destination and required documents

Verified series range

Product Family Overview

The values below describe the available family range from Xinding's supplied technical files. Confirm the exact model parameters and drawing before ordering.

Motor sizes20 / 28 / 35 / 42 mm

TransmissionACME or ball screw

Step angle1.8°

SelectionLead and stroke by size

Select the module by required travel, lead, motor size, load and mounting dimensions. Additional screw specifications and special stroke requirements require confirmation.
