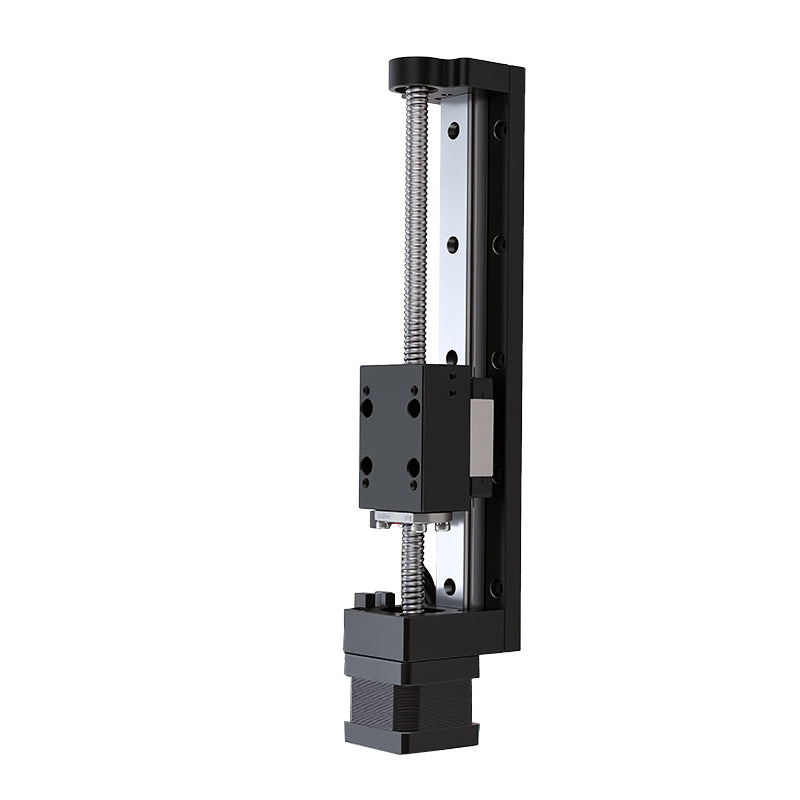

Ball Screw Linear Slide Table (High-Precision Positioning Table)
High-rigidity ball screw linear slide table with integrated precision linear guides. Delivers smooth, zero-backlash linear motion for industrial CNC, robotics, and automation. Our ball screw linear slide table is a high-rigidity, precision-engineered positioning platform built...
Include your application, load, speed, travel, accuracy, quantity and installation requirements.
Technical Information
Product Details
High-rigidity ball screw linear slide table with integrated precision linear guides. Delivers smooth, zero-backlash linear motion for industrial CNC, robotics, and automation.
Our ball screw linear slide table is a high-rigidity, precision-engineered positioning platform built for high-duty linear motion applications. Combining a preloaded precision ball screw drive with heavy-duty linear motion block guides, this slide table provides low operational friction, exceptional dynamic stiffness, and smooth bi-directional travel.
Designed to handle multi-directional loads (radial, reverse-radial, and lateral), this linear slide table ensures sub-micron repeatability under demanding continuous operating cycles. It is widely used across semiconductor processing, laser machining, and multi-axis gantry robotics.
Key Features & Advantages
-
High Load Capacity & Rigidity: Heavy-duty linear guide rails handle combined moment loads and heavy vertical payloads.
-
Low Friction & High Efficiency: Rolling element ball screw design ensures >90% transmission efficiency and minimal motor torque loss.
-
Zero-Backlash Repeatability: Preloaded ball nuts eliminate axial play, ensuring precise bi-directional positioning accuracy.
-
Multi-Axis Compatibility: Pre-drilled mounting patterns allow seamless combination into XY, XZ, or XYZ multi-axis gantry configurations.
Technical Specifications
| Feature / Parameter | Standard Specification |
| Drive Mechanism | Precision C5 / C7 Ground & Rolled Ball Screw |
| Guideway System | Dual High-Rigidity Linear Motion Guides |
| Table Material | High-Grade Machined Aluminum / Cast Iron Base |
| Effective Stroke Options | 100mm to 1000mm (Customizable) |
| Ball Screw Diameters | 12mm, 16mm, 20mm |
| Positional Repeatability | ± 0.005 mm (C5 Grade) / ± 0.01 mm (C7 Grade) |
| Max Horizontal Load | Up to 80 kg |
| Max Vertical Load | Up to 35 kg |
| IP Rating / Protection | Dust-proof Stainless Steel Strip Cover Options |
Typical Applications
-
Semiconductor Wafer Inspection & PCB Drilling Rigs
-
Laser Cutting, Marking, and Engraving Worktables
-
Automated Pick-and-Place Gantry Robots & Assembly Lines
