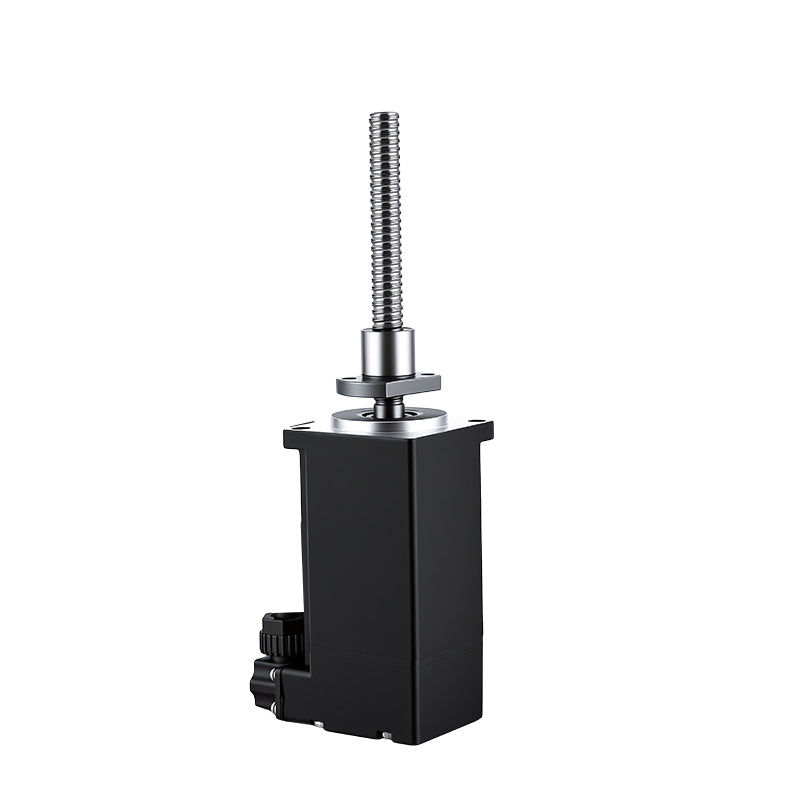

NEMA 12 Linear Lead Screw Servo Motor (30mm Frame)
High-efficiency NEMA 12 linear lead screw servo motor. Precision closed-loop control and customizable screw leads for automated laboratory instruments and electronic assembly. Our NEMA 12 linear lead screw servo motor features a compact 30mm frame...
Include your application, load, speed, travel, accuracy, quantity and installation requirements.
Technical Information
Product Details
High-efficiency NEMA 12 linear lead screw servo motor. Precision closed-loop control and customizable screw leads for automated laboratory instruments and electronic assembly.
Our NEMA 12 linear lead screw servo motor features a compact 30mm frame size engineered for continuous high-duty linear positioning. By integrating a high-performance brushless servo motor with a precision-ground stainless steel lead screw, this linear servo actuator delivers higher velocity, superior thermal efficiency, and dynamic responsiveness.
Designed to replace traditional open-loop actuators, this closed-loop linear servo motor ensures high-speed acceleration without step loss, making it a reliable solution for precision OEM instruments.
Key Features & Advantages
-
High Torque-to-Size Ratio: Compact 30mm profile offers increased continuous linear thrust.
-
Whisper-Quiet Operation: Closed-loop servo control minimizes motor vibration and operational resonance.
-
Zero Step Loss: Continuous encoder feedback ensures accurate positioning under varying load conditions.
-
Low Thermal Generation: Current is optimized dynamically based on payload demand, reducing heat output.
Technical Specifications
| Feature / Parameter | Standard Specification |
| Frame Size | NEMA 12 (30mm x 30mm) |
| Motor Type | Brushless Linear Servo Motor |
| Feedback System | Incremental / Absolute Optical Encoder |
| Screw Material | SUS304 / SUS316 Stainless Steel |
| Lead Screw Diameter | 4mm / 6mm |
| Lead Options | 1.0mm, 2.0mm, 6.0mm per revolution |
| Max Thrust Force | Up to 180 N |
| Positional Repeatability | ± 0.003 mm |
| IP Rating | IP40 Standard |
Typical Applications
-
Automated Pipetting & Reagent Mixing Stations
-
Electronic Component Testing Rigs & Sorters
-
Precision Small-Scale XY Motion Stages
