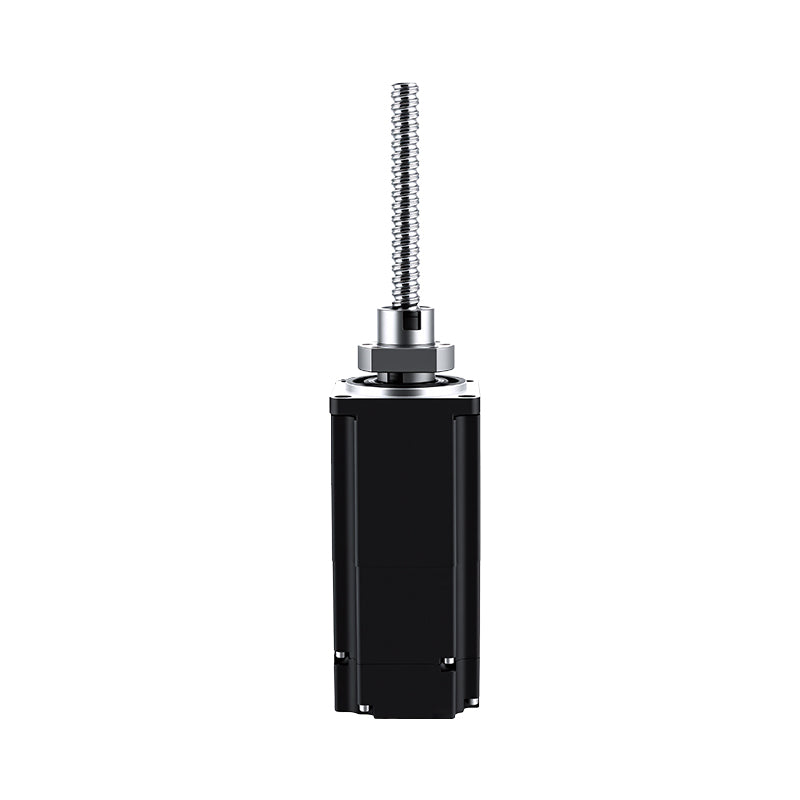

NEMA 11 Linear Lead Screw Servo Motor (28mm Frame)
Ultra-compact NEMA 11 linear lead screw servo motor. High-speed closed-loop positioning and precision lead screw integration for micro medical devices and robotics. The NEMA 11 linear lead screw servo motor is an ultra-compact, closed-loop linear...
Include your application, load, speed, travel, accuracy, quantity and installation requirements.
Technical Information
Product Details
Ultra-compact NEMA 11 linear lead screw servo motor. High-speed closed-loop positioning and precision lead screw integration for micro medical devices and robotics.
The NEMA 11 linear lead screw servo motor is an ultra-compact, closed-loop linear motion solution designed for high-precision applications where space is extremely limited. Combining a 28mm high-density servo motor with an integrated precision ACME or ball lead screw, this micro linear actuator provides high positioning resolution, real-time position feedback, and zero step loss.
Equipped with an integrated high-resolution optical or magnetic encoder, this compact linear servo actuator delivers smooth, whisper-quiet operation and precise torque control, making it ideal for micro-fluidics, semiconductor alignment, and miniaturized medical devices.
Key Features & Advantages
-
Ultra-Compact 28mm Footprint: Delivers precise closed-loop linear motion within a miniaturized NEMA 11 motor frame.
-
Closed-Loop Precision: Integrated high-resolution encoder prevents stall conditions and eliminates lost steps.
-
Direct-Drive Efficiency: Eliminates flexible couplings to maximize torsional stiffness and minimize backlash.
-
High-Speed Positioning: Supports higher speed profiles and smoother acceleration curves compared to standard open-loop stepper systems.
Technical Specifications
| Feature / Parameter | Standard Specification |
| Frame Size | NEMA 11 (28mm x 28mm) |
| Motor Type | Closed-Loop Linear Servo Motor |
| Screw Type | Precision ACME Lead Screw / Miniature Ball Screw |
| Encoder Resolution | 1000 / 2000 / 4096 CPR (Counts Per Rev) |
| Screw Diameter | Tr3.5mm / Tr4mm / 6mm Ball Screw |
| Lead / Pitch Range | 1.0mm, 2.0mm, 4.0mm per revolution |
| Rated Voltage / Current | 24V DC / 1.2A |
| Positional Accuracy | ± 0.005 mm |
| Max Linear Force | Up to 120 N |
Typical Applications
-
Micro-Fluidic Dosing & Portable Syringe Pumps
-
Miniature Optical & Laser Alignment Stages
-
Micro-Robotics & Semiconductor Inspection Equipment
Engineering resources
Parameters, Drawings & Performance Data
Use order-specific technical documents for final selection. Published information should be checked against the required operating conditions and mechanical interface.
Technical parameters, drawings and performance data are confirmed against the selected model and operating conditions.
Request Technical DataBefore requesting a quote
Information Needed for Model Selection
- Application and motion type
- Load or required thrust / torque
- Speed, travel and acceleration
- Accuracy and repeatability target
- Duty cycle and operating environment
- Installation space and interface drawing
- Controller, drive and feedback requirements
- Quantity, destination and required documents
Verified series range
Product Family Overview
The values below describe the available family range from Xinding's supplied technical files. Confirm the exact model parameters and drawing before ordering.Product Support
