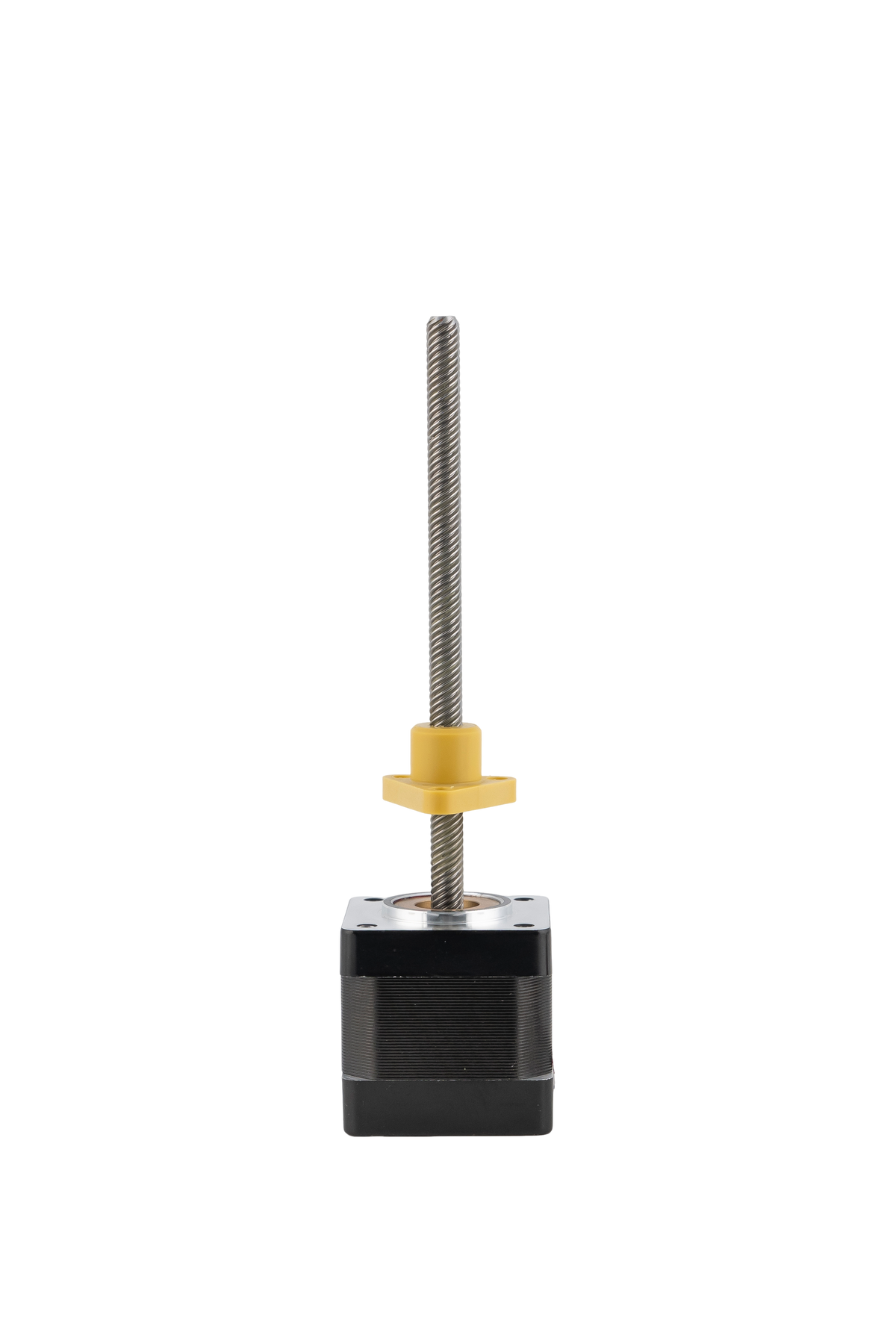

External Drive Hybrid ACME Lead Screw Stepper Motor

Heavy-duty external drive hybrid ACME lead screw stepper motor. Features direct-drive linear motion and customizable external nuts for industrial CNC, linear stages, and robotics. Engineered for ultimate rigidity and versatile mounting, our external drive hybrid...

Request a Quote

Include your application, load, speed, travel, accuracy, quantity and installation requirements.

Technical Information

Product Details

Heavy-duty external drive hybrid ACME lead screw stepper motor. Features direct-drive linear motion and customizable external nuts for industrial CNC, linear stages, and robotics.

Engineered for ultimate rigidity and versatile mounting, our external drive hybrid ACME lead screw stepper motor combines a high-torque hybrid stepper motor with an extended, precision-machined ACME shaft. In this configuration, the lead screw is rigidly affixed to the rotor and spins with the motor, driving an external nut back and forth along the screw.

Equipped with optional spring-loaded anti-backlash nuts, this external linear actuator delivers high axial stiffness, near-zero backlash, and reliable positioning across high duty-cycle industrial operations.

Key Features & Advantages

Direct-Drive Precision: Integrated screw design eliminates flex couplers, lowering dynamic runout and improving axial load alignment.
Customizable Nut Configurations: Choose between flange nuts, cylindrical nuts, bronze nuts, or anti-backlash nuts based on load requirements.
Zero-Backlash Performance: Pre-loaded nut assemblies counteract mechanical clearance for strict bidirectional repeatability.
Durable Construction: High-grade SUS304 stainless steel screw paired with precision ball bearings ensures smooth, maintenance-free life.

Technical Specifications

Feature / Parameter	Standard Specification
Frame Sizes	NEMA 8 (20mm), NEMA 11 (28mm), NEMA 14 (35mm), NEMA 17 (42mm), NEMA 23 (57mm)
Drive Architecture	External Drive (Rotating Screw, Traveling External Nut)
Screw Diameter	3.5mm to 12mm
Screw Material	SUS304 / SUS316 Stainless Steel
Nut Flange Types	Round Flange, Threaded Flange, Square Flange
Linear Travel per Step	0.0015mm to 0.04mm (at 1.8° step angle)
Axial Play / Backlash	Standard Nut: < 0.08mm / Anti-Backlash Nut: < 0.01mm
IP Rating	IP40 (IP65 Water-resistant coating available upon request)

Typical Applications

Multi-Axis Industrial Linear Stages & Gantry Robots
Automated Packaging Machines & Pick-and-Place Arms
High-Precision Medical Laboratory Automation Systems

Engineering resources

Parameters, Drawings & Performance Data

Use order-specific technical documents for final selection. Published information should be checked against the required operating conditions and mechanical interface.

Technical parameters, drawings and performance data are confirmed against the selected model and operating conditions.

Request Technical Data

Before requesting a quote

Information Needed for Model Selection

Application and motion type
Load or required thrust / torque
Speed, travel and acceleration
Accuracy and repeatability target
Duty cycle and operating environment
Installation space and interface drawing
Controller, drive and feedback requirements
Quantity, destination and required documents

Verified series range

Product Family Overview

The values below describe the available family range from Xinding's supplied technical files. Confirm the exact model parameters and drawing before ordering.

Family size range14–86 mm

Step angle1.8°

ConfigurationsCaptive / External / Non-captive

Lead wires4

Available sizes depend on configuration. The supplied range includes 14, 20, 28, 35, 42, 57, 60 and 86 mm products. Screw length and screw-end machining can be specified for applicable models.
