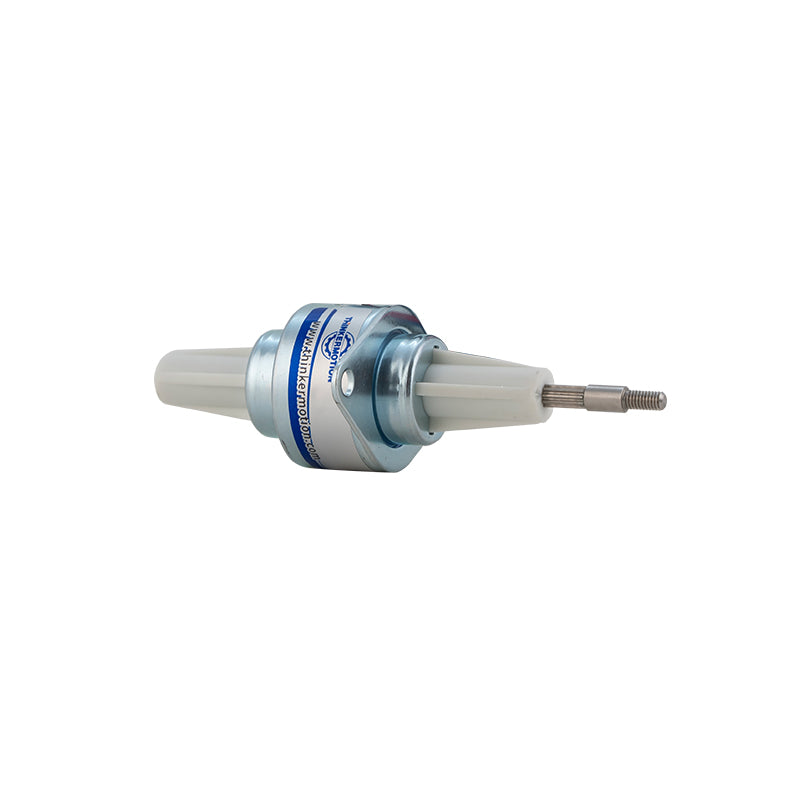

Captive PM Linear Stepper Motor (Permanent Magnet Linear Actuator)
Precision captive PM linear stepper motor with built-in anti-rotation mechanism. Compact, cost-effective linear actuator for medical pumps, valve control, and automated instruments. Our captive PM linear stepper motor features an internal anti-rotation mechanism that prevents...
Include your application, load, speed, travel, accuracy, quantity and installation requirements.
Technical Information
Product Details
Precision captive PM linear stepper motor with built-in anti-rotation mechanism. Compact, cost-effective linear actuator for medical pumps, valve control, and automated instruments.
Our captive PM linear stepper motor features an internal anti-rotation mechanism that prevents the lead screw from spinning. As the permanent magnet motor rotates, the lead screw extends and retracts directly from the front faceplate without requiring external anti-rotation guides or linear rails.
This self-contained, cost-effective permanent magnet linear actuator provides a plug-and-play solution for short-stroke precision positioning. Offering a high force-to-size ratio and low power consumption, it is engineered for compact OEM equipment requiring dependable linear motion.
Key Features & Advantages
-
Built-in Anti-Rotation Mechanism: The screw shaft moves in a pure linear direction without rotating, saving mechanical space and installation time.
-
Cost-Effective Precision: High force output in a lightweight, economical permanent magnet design ideal for volume OEM applications.
-
Self-Locking Safety: Trapezoidal thread design provides inherent back-driving resistance to hold position when power is off.
-
Compact Footprint: Modular canister sizes allow easy integration into portable and space-restricted devices.
Technical Specifications
| Feature / Parameter | Standard Specification |
| Motor Type | Permanent Magnet (PM) Stepper Linear Actuator |
| Design Style | Captive (Built-in Anti-Rotation) |
| Frame Outer Diameter | 20mm, 25mm, 35mm, 42mm |
| Step Angle | 7.5° (48 steps/rev) / 15° (24 steps/rev) |
| Screw Type | Precision Stainless Steel Lead Screw |
| Standard Stroke Lengths | 12.7mm (0.5 in), 19.1mm (0.75 in), 25.4mm (1.0 in), 38.1mm (1.5 in) |
| Max Linear Thrust | Up to 180 N |
| Positional Accuracy | ± 0.015 mm |
| Insulation Class | Class B (130°C) |
Typical Applications
-
Portable Medical Diagnostic Devices & Syringe Pumps
-
Electronic Fluid Control Valves & Dosing Equipment
-
Automated Office Equipment & Consumer Electronics Test Rigs
Engineering resources
Parameters, Drawings & Performance Data
Use order-specific technical documents for final selection. Published information should be checked against the required operating conditions and mechanical interface.
Technical parameters, drawings and performance data are confirmed against the selected model and operating conditions.
Request Technical DataBefore requesting a quote
Information Needed for Model Selection
- Application and motion type
- Load or required thrust / torque
- Speed, travel and acceleration
- Accuracy and repeatability target
- Duty cycle and operating environment
- Installation space and interface drawing
- Controller, drive and feedback requirements
- Quantity, destination and required documents
