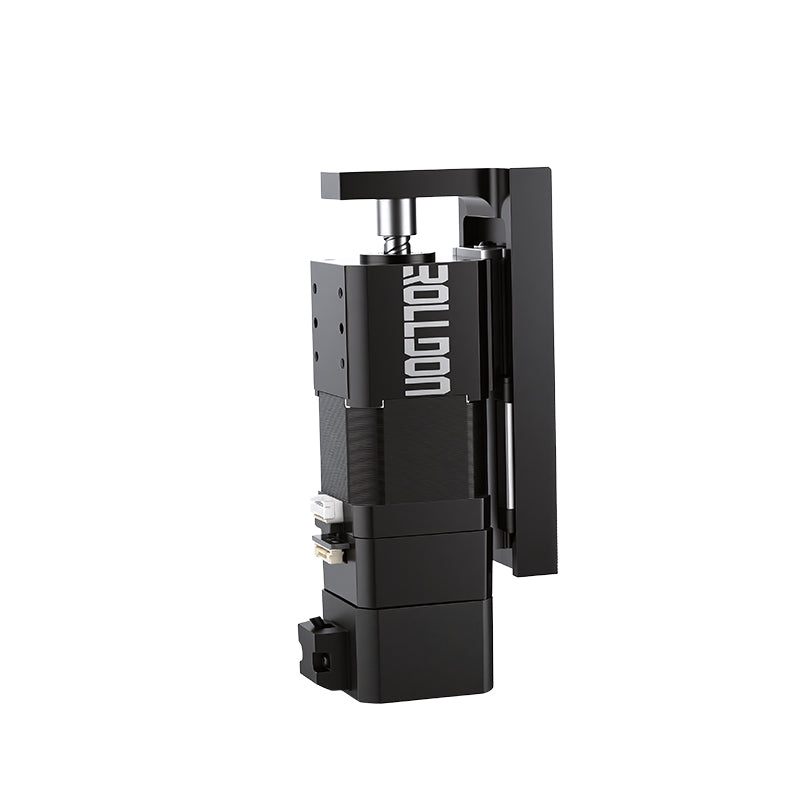

Ball Screw Linear Module (Fully Enclosed Linear Motion Stage)

Industrial ball screw linear module featuring high speed, high thrust, and heavy payload capacity. Fully enclosed aluminum housing for cleanroom and harsh factory automation environments. The ball screw linear module is an all-in-one industrial motion...

Request a Quote

Include your application, load, speed, travel, accuracy, quantity and installation requirements.

Technical Information

Product Details

Industrial ball screw linear module featuring high speed, high thrust, and heavy payload capacity. Fully enclosed aluminum housing for cleanroom and harsh factory automation environments.

The ball screw linear module is an all-in-one industrial motion stage engineered for high-speed, high-thrust linear positioning. Enclosed in a high-strength aluminum extrusion profile, this module integrates a precision ball screw drive with high-load linear guide bearings to deliver superior mechanical protection, minimal maintenance, and long service life.

Available in both semi-enclosed and fully enclosed dust-proof structures, this versatile linear actuator module is capable of high linear velocities without sacrificing positioning accuracy, making it ideal for cleanroom applications, packaging equipment, and factory automation lines.

Key Features & Advantages

Fully Enclosed Protective Housing: Dust-proof and debris-resistant structure protects internal screw and guide components from environmental contamination.
High Velocity & Acceleration: Low-friction ball screw allows fast movement and smooth acceleration profiles.
High Payload Capability: Optimized base profile withstands high axial thrust and bending moments during dynamic motion.
Flexible Motor Mounting: Supports direct-inline motor coupling or side-parallel belt drive motor mounts to fit tight machine spaces.

Technical Specifications

Feature / Parameter	Standard Specification
Drive Type	High-Precision Rolled / Ground Ball Screw
Structure Style	Semi-Enclosed / Fully Enclosed Dust-Proof Profile
Module Width Sizes	40mm, 60mm, 80mm, 120mm, 170mm
Standard Travel Stroke	100mm up to 1500mm
Screw Lead Options	5mm, 10mm, 16mm, 20mm per revolution
Positional Repeatability	± 0.01 mm
Max Operating Speed	Up to 1200 mm/s
Max Horizontal Load	Up to 110 kg

Typical Applications

Automated Packaging & Palletizing Machinery
Cleanroom Material Handling & LCD/OLED Panel Transport
Multi-Axis Industrial Robots & Automated Inspection Systems

Engineering resources

Parameters, Drawings & Performance Data

Use order-specific technical documents for final selection. Published information should be checked against the required operating conditions and mechanical interface.

Technical parameters, drawings and performance data are confirmed against the selected model and operating conditions.

Request Technical Data

Before requesting a quote

Information Needed for Model Selection

Application and motion type
Load or required thrust / torque
Speed, travel and acceleration
Accuracy and repeatability target
Duty cycle and operating environment
Installation space and interface drawing
Controller, drive and feedback requirements
Quantity, destination and required documents

Verified series range

Product Family Overview

The values below describe the available family range from Xinding's supplied technical files. Confirm the exact model parameters and drawing before ordering.

Motor sizes20 / 28 / 35 / 42 mm

TransmissionACME or ball screw

Step angle1.8°

SelectionLead and stroke by size

Select the module by required travel, lead, motor size, load and mounting dimensions. Additional screw specifications and special stroke requirements require confirmation.
